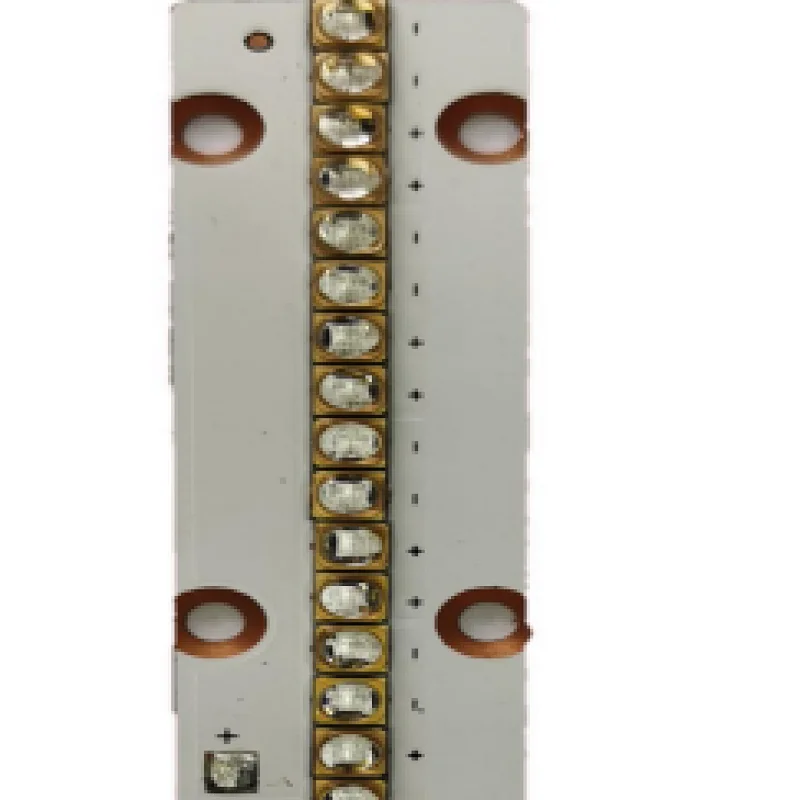

70W UV LED MODULE SMD3535

·  Electrical Characteristics

NO.

ITEM

Unit

Parameter

1

Operating  Voltage

V

40-50VDC

2

PCB Size

MM

95*18mm

3

Operating Current

A

1.4A（Max）

4

Power

W

70W(Max)

5

Power Density

MW

＞15000

·  Photometric Characteristics

1

Wavelength

nm

365nm-405nm

2

UV LED Type

SMD3535

3

Chip Brand

Epileds/ San’an

4

Reflector Angle

°

60°/90°/120°

5

LED QTY

Pcs

24

·  Environmental Range

1

Operating Range

°C

-10～+40℃

2

Operating Humidity

RH

＜60%

3

Storage Range

°C

-20～+60℃

4

Storage Humidity

RH

35%---45%

Note:

1. More details can be offered based on the further enquiry.
2. Customized is available.
