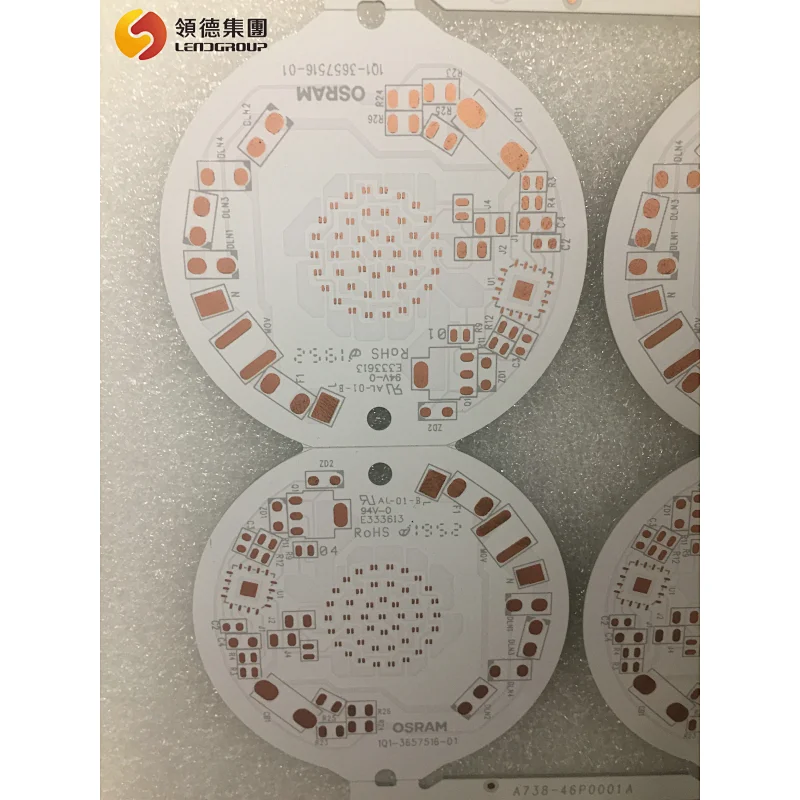

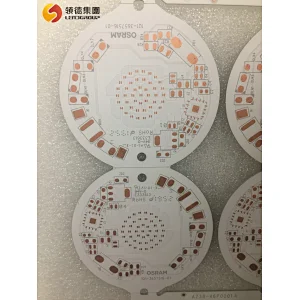

aluminum 5052 single sided pcb
aluminum 5052 single sided pcb

aluminum 5052 single sided pcb

Model NO.
LD-A738-46P0001A
Quantity:

NO.

ITEM

Unit

Parameter

1

PCBsize

mm

55x55mm=1PCS

2

Board material

Aluminium/ AL5052

3

Thermal Conductivity

W/m.k

1.0- 3.0

4

Number of layers

Single side PCB

5

Minimum hole diameter

mm

0.4

6

Final height of PCB

mm

1.0mm ±0.10mm

7

Minimum line width/space

mil

3/3

8

Solder Mask

As customer specified

9

Surface Finished

OSP

Note:

       1.More details can be offered based on the furthe

       2. Customized is available.
