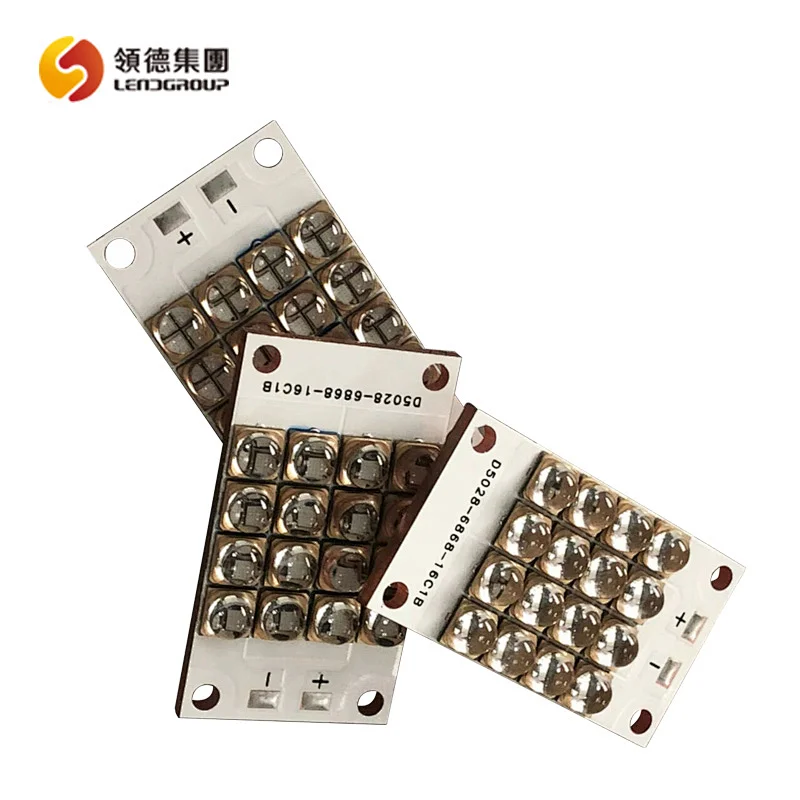

Factory Price High Power 200w 250w 365nm 385nm 395nm 420nm curing COB UV LED  module
Factory Price High Power 200w 250w 365nm 385nm 395nm 420nm curing COB UV LED  module
Factory Price High Power 200w 250w 365nm 385nm 395nm 420nm curing COB UV LED  module

Factory Price High Power 200w 250w 365nm 385nm 395nm 420nm curing COB UV LED module

Model NO.
LD-5028-16S1P
Quantity:

·  Electrical Characteristics

NO.

ITEM

Unit

Parameter

1

Operating  Voltage

V

110-120VDC

2

PCB Size

MM

50*28mm

3

Operating Current

A

1.4AMax

4

Power

W

160W(Max)

5

Power Density

MW

>48000

·  Photometric Characteristics

1

Wavelength

nm

365+/-5nm

2

UV LED Type

SMD6868

3

Chip Brand

Epileds/ San’an

4

Reflector Angle

°

60°/90°/120°

5

LED QTY

Pcs

16

·  Environmental Range

1

Operating Range

°C

-10+40℃

2

Operating Humidity

RH

60%

3

Storage Range

°C

-20+60℃

4

Storage Humidity

RH

35%---45%

Note:

         1. More details can be offered based on the further enquiry.

          2. Customized is available.
