Shenzhen Leadopto Electronics Co., Ltd. - Sub of Lead Group Jiangxi Leadfly Circuit Co., Ltd. - Sub of Lead GroupAbout Us2/F, BLDG B, Tongfuyu Industrial Zone, Heping, Fuhai, Bao'an, Shenzhen, ChinaFounded in 2003, with the production area of 135,000 suqare meters, automatic production lines that fit to the international standard, precision testing equipments and the ISO14001, ITAF16949 system, Lead Group has achieved 200,000 square meters for the monthly production capacity. Our main products are the single side Aluminum PCB, FR4 PCB(single side& double side), various PCBA for LED lighting and UV LED Modules. With the experience of 18-year in this field, Lead Group has already passed cUL, RoHS and IPC. We have been th

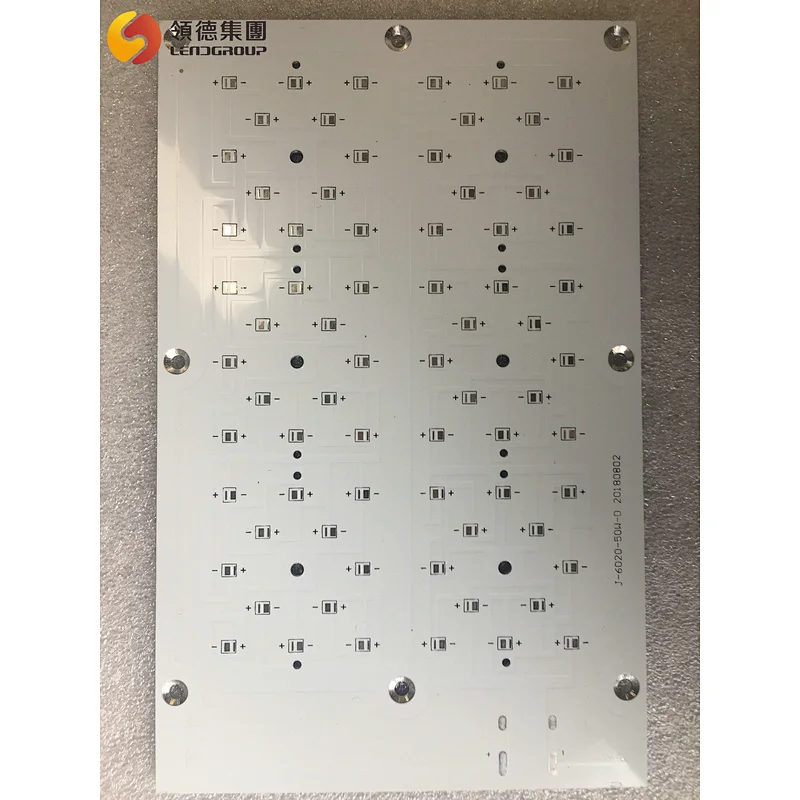

pcb board for led lighting
pcb board for led lighting

pcb board for led lighting

Model NO.
LD-A738-46P0036A
Quantity:

NO.

ITEM

Unit

Parameter

1

PCBsize

mm

60x40mm=1PCS

2

Board material

Aluminium

3

Thermal Conductivity

W/m.k

1.0- 3.0

4

Number of layers

Single side PCB

5

Minimum hole diameter

mm

0.4

6

Final height of PCB

mm

1.0mm ±0.10mm

7

Minimum line width/space

mil

3/3

8

Solder Mask

As customer specified

9

Surface Finished

HASL

Note:

       1.More details can be offered based on the furthe

       2. Customized is available.

NO.

ITEM

Unit

Parameter

1

PCBsize

mm

10x8mm=1PCS

2

Board material

Aluminium

3

Thermal Conductivity

W/m.k

1.0- 3.0

4

Number of layers

Single side PCB

5

Minimum hole diameter

mm

0.4

6

Final height of PCB

mm

1.6mm ±0.16mm

7

Minimum line width/space

mil

3/3

8

Solder Mask

As customer specified

9

Surface Finished

LF-HASL

Note:

       1.More details can be offered based on the furthe

       2. Customized is available.
