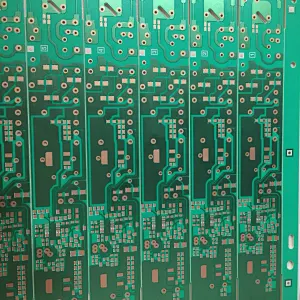

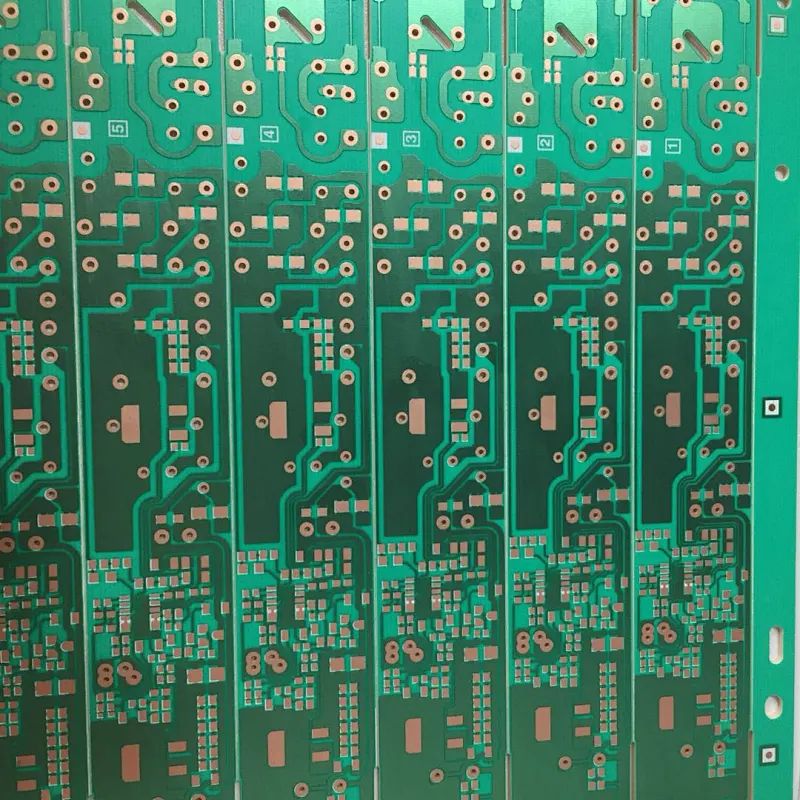

PCB FOR LED

Model NO.: LD-A738-46P0100B
Minimum order quantity: 10000 pieces
Supply Ability: 9.0E7 pieces / Month
Country of Origin: Shenzhen

Quantity:

Product Description

NO.	Item	Unit	Parameter
1	PCB size	mm	68x8mm=1PCS
2	Board material		CEM3
3	Thermal Conductivity	W/m.k	1.0- 3.0
4	Number of layers		2
5	Minimum hole diameter	mm	0.4
6	Final height of PCB	mm	1.2mm ±0.12mm
7	Minimum line width/space	mil	3/3
8	Solder Mask		Top. 12µm Minimum.
9	Surface Finished		OSP
Note: 1.More details can be offered based on further enquiry. 2. Customized is available.

Send Message

Related Products

aluminum pcb for LED bulb

aluminum pcb for LED bulb

Model NO. LD-A738-46P0002A

pcb board for led lighting

pcb board for led lighting

Model NO. LD-A738-46P0009A

FR4 PCB FOR LED LIGHTING

FR4 PCB FOR LED LIGHTING

Model NO. LD-A738-46P0012B

Single Layer setting Electronic manufacturing oem PCB board smd t8 led tube light Aluminum /FR4

Single Layer setting Electronic manufacturing oem PCB board smd t8 led tube light Aluminum /FR4

Model NO. LD-A738-46P0019A

single side pcb for led lighting

single side pcb for led lighting

Model NO. LD-A738-46P0018A

strip pcb for led lighting

strip pcb for led lighting

Model NO. LD-A738-46P0020A

aluminum 5052 single sided pcb

aluminum 5052 single sided pcb

Model NO. LD-A738-46P0001A

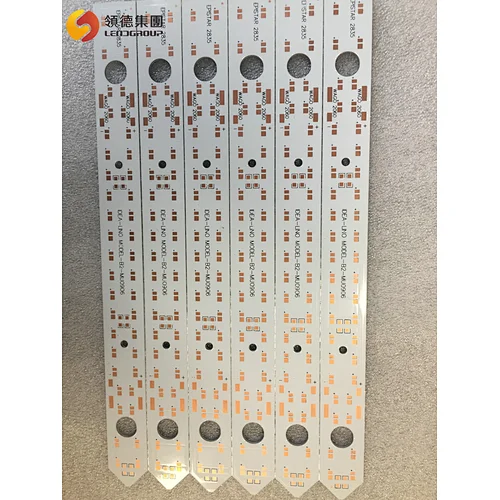

2835 strip pcb for led light
