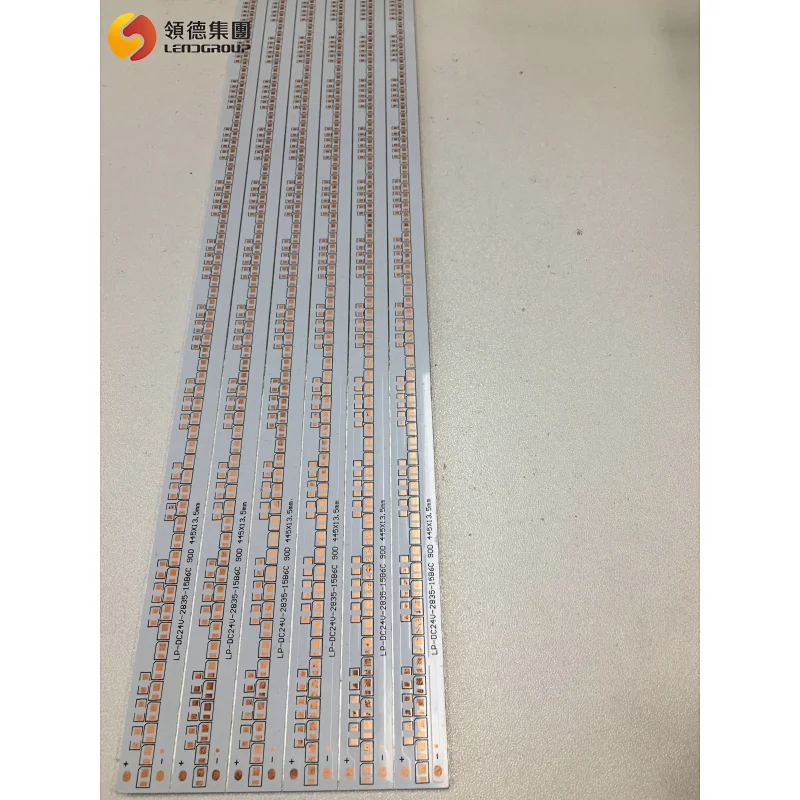

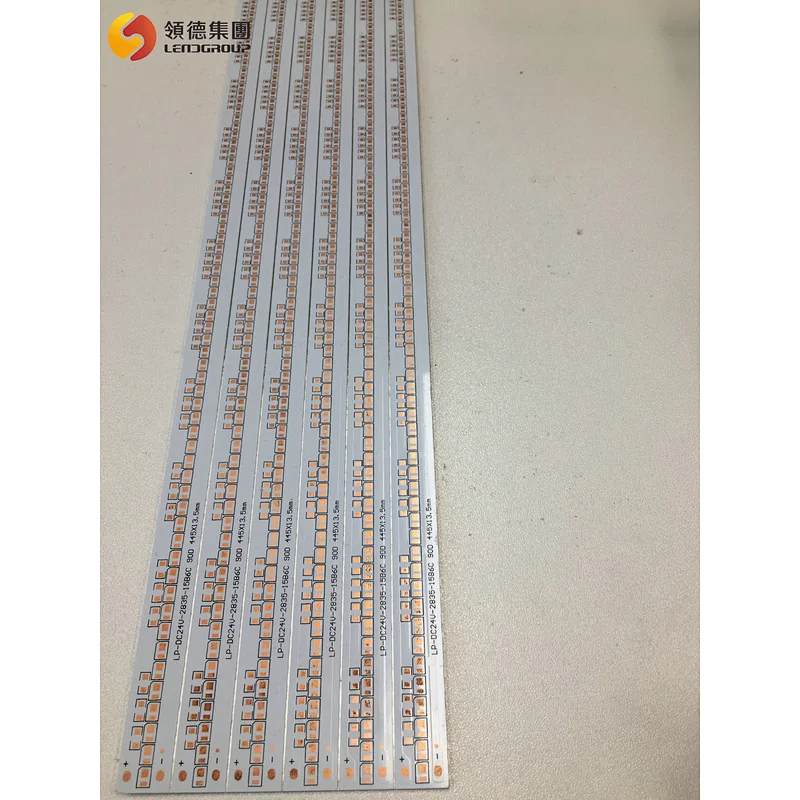

strip pcb for led lighting
strip pcb for led lighting

strip pcb for led lighting

Model NO.
LD-A738-46P0020A
Quantity:

NO.

Item

Unit

Parameter

1

PCB size

mm

1200x8mm=1PCS

2

Board material

Aluminium/ AL5052

3

Thermal Conductivity

W/m.k

1.0- 3.0

4

Number of layers

Single side PCB

5

Minimum hole diameter

mm

0.4

6

Final height of PCB

mm

1.2mm ±0.12mm

7

Minimum line width/space

mil

3/3

8

Solder Mask

White,PSR400 WT02

9

Surface Finished

OSP

Note:

       1. More details can be offered based on further enquiry.

       2. Customized is available.
