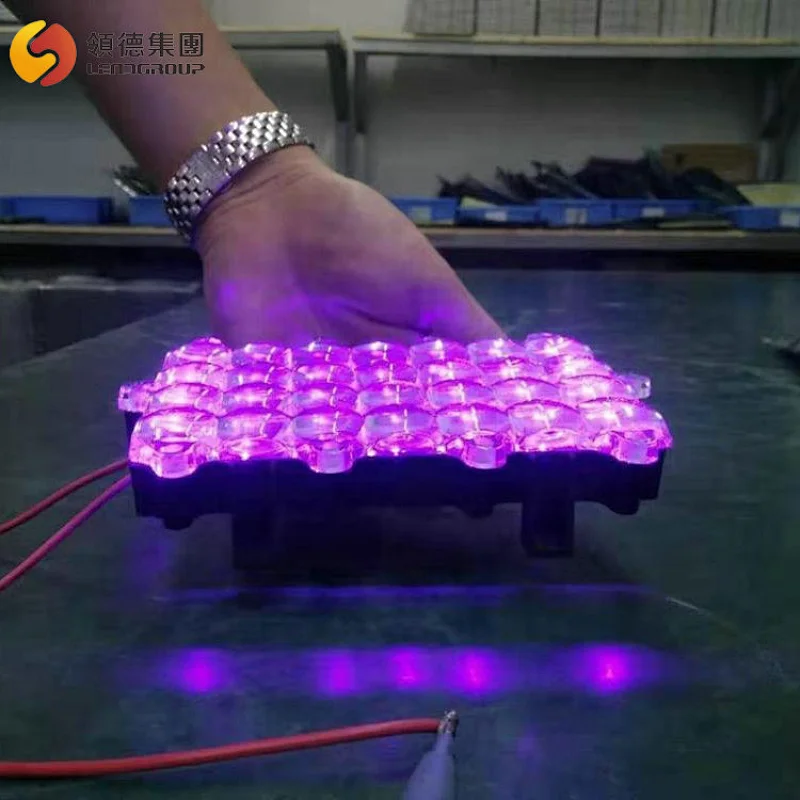

uv led module
uv led module
uv led module

uv led module

Model NO.
LD-5638-5S7P
Delivery:
As negotiation
Minimum order quantity:
100 pieces
Supply Ability:
90000 pieces / Week
Country of Origin:
Shenzhen
Stock Time:
7 Days
Quantity:

·  Electrical Characteristics

NO.

ITEM

Unit

Parameter

1

Operating  Voltage

V

16-18VDC

2

PCB Size

MM

56*38MM

3

Operating Current

A

4.9AMax

4

Power

W

80W(Max)

5

Power Density

MW

>45000

·  Photometric Characteristics

1

Wavelength

nm

365nm-405nm

2

UV LED Type

SMD3535

3

Chip Brand

Epileds/ San’an

4

Reflector Angle

°

60°/90°/120°

5

LED QTY

Pcs

35

·  Environmental Range

1

Operating Range

°C

-10+40℃

2

Operating Humidity

RH

60%

3

Storage Range

°C

-20+60℃

4

Storage Humidity

RH

35%---45%

Note:

         1. More details can be offered based on the further enquiry.

          2. Customized is available.
